Aluminum Die Casting for Automotive Powertrain: Gearbox and Transmission Housings
High-pressure die casting in aluminum, taken into the powertrain: gearbox, transfer-case and e-axle housings cast to ±0.1–0.3 mm, machined to H7 on bearing bores, and heat-treated to T6 where the structure needs it.
Aluminum Die Casting for Automotive Powertrain at Hydroforce
Hydroforce runs the same high-pressure die-casting line already described in aluminum die-cast housings for LED lighting into a different application: automotive powertrain housings. The press, the tooling shop and the CMM inspection station do not change between a heat-sink housing and a transmission housing — what changes is wall thickness, alloy choice, heat treatment and the tolerance that matters most, the bearing bore. Engine components and transmission housings already sit on our die-casting capability page as a served sector; this article goes into what that means in practice for a gearbox housing specifically.
A transmission housing is a harder part to get right than a lighting enclosure. It carries bearing loads, seals oil under pressure and temperature cycling, and has to hold its shape against the torque reactions of the gears inside it. Getting there in aluminum instead of cast iron or a welded steel fabrication is a question of process control, not luck.
Why Aluminum Die Casting for Gearbox and Transmission Housings
- Weight. Aluminum runs at roughly one-third the density of cast iron for a comparable wall section. On a transmission or transfer-case housing, that difference shows up directly in vehicle weight and, on electrified platforms, in range.
- One-shot integration. Bearing bosses, oil galleries, shift-fork bosses, mounting ribs and the bell-housing flange are formed in the same shot as the housing wall. A fabricated or machined-from-billet housing needs separate operations, or separate parts, to get the same features.
- Cycle time and cost at volume. A production cycle on our press runs 30 seconds to 2 minutes depending on part size, against the many minutes a comparable housing takes to machine from a solid billet. That difference is what makes die casting the right process once volumes move past a handful of prototypes.
- A structural path when you need one. Standard high-pressure die casting traps gas in the melt, which is fine for a housing that only has to hold its shape, but a solution-treated part will blister if that gas is present. Where a housing needs T6 strength, we run it through the press with vacuum assist to hold porosity low enough that the part survives solution treatment and ageing intact.
Capability
| Parameter | Typical range |
|---|---|
| Process | High-pressure die casting (HPDC); vacuum-assisted for T6 or leak-critical housings |
| Alloys | EN AC-46000 (AlSi9Cu3(Fe)), EN AC-47100 (AlSi11Cu2(Fe)), EN AC-43400 (AlSi10Mg(Fe)) for heat-treated/structural parts |
| Tooling steel | H13 / P20 |
| As-cast tolerance | ±0.1–0.3 mm |
| Surface finish, as-cast | Ra 1.6–6.3 µm |
| Wall thickness | 0.5–1.5 mm on thin sections; structural walls and ribs sized to the load case |
| Machined features | Bearing bores to H7, mounting-flange flatness, thread inserts, oil galleries and sensor bosses |
| Heat treatment | T6 solution treatment and ageing (vacuum-cast housings) |
| Cycle time | 30 seconds – 2 minutes |
| Inspection | CMM (Zeiss), X-ray for internal porosity, SPC with real-time monitoring, material certification to EN 1706 |
| Quality system | ISO 9001:2015, TÜV, SGS |
| Volume | From prototype quantities to 1,000+ parts per day in series |
Typical automotive housings we cast

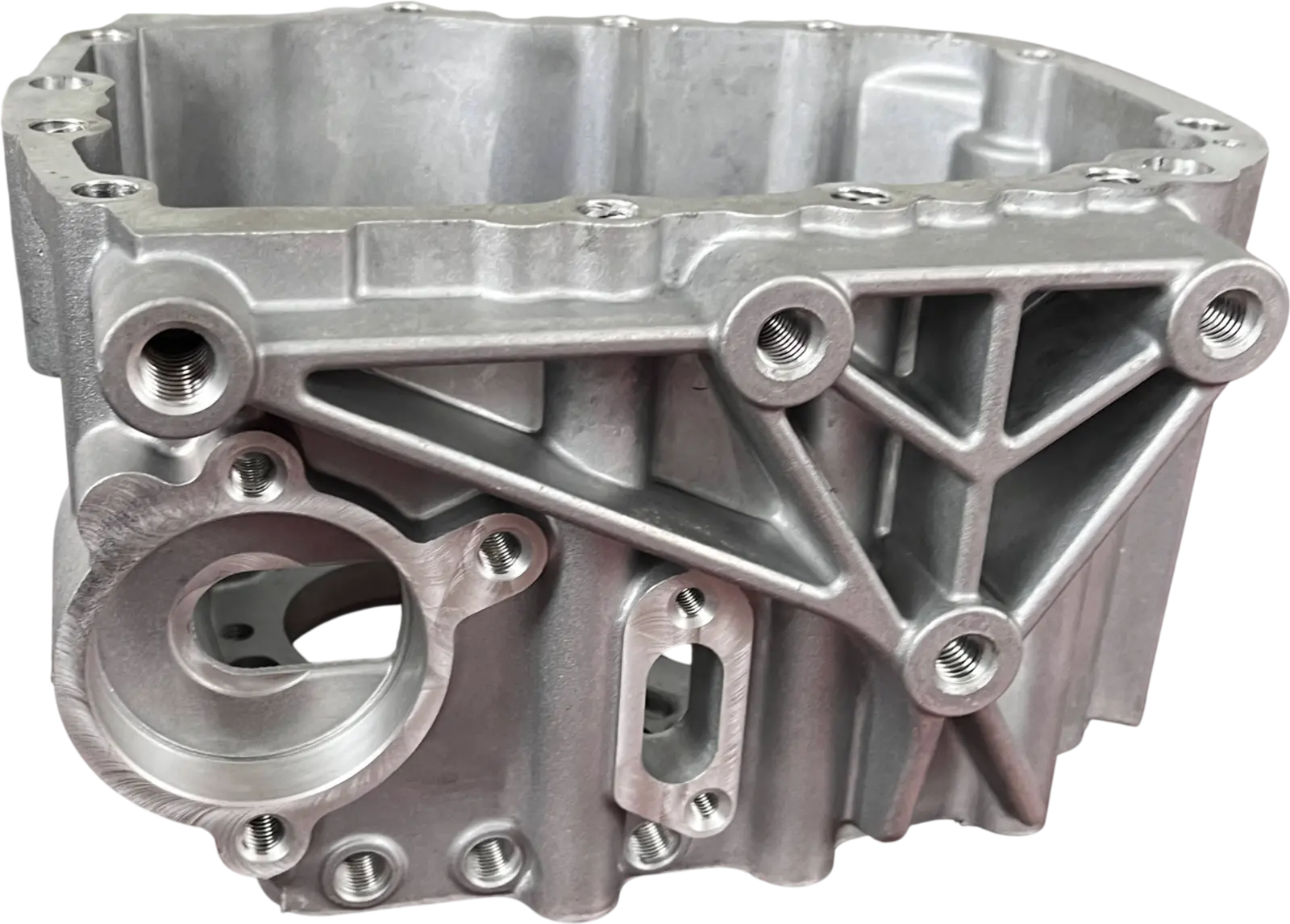

- Manual transmission housings and bell housings — mounting flange to the engine block, shift-fork bosses, and the machined bore pattern for the input shaft bearing.
- Automatic and dual-clutch transmission (DCT) housings and covers — sealed oil volumes, valve-body mounting faces, and the sensor bosses that a modern automatic gearbox needs.
- Transfer-case housings for 4x4 and AWD driveline — dual output bores, chain or gear-train clearance cast into the wall.

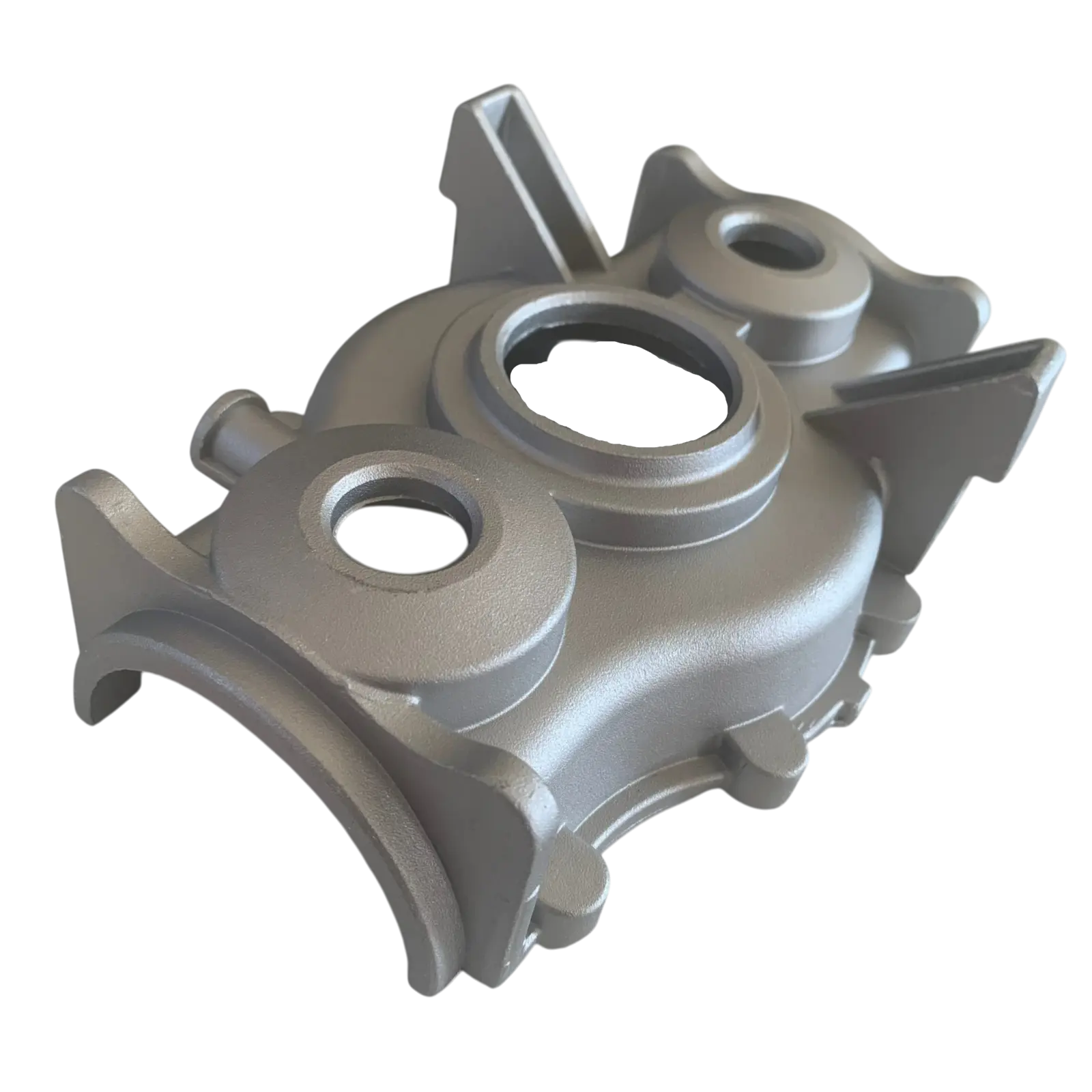

- Differential and final-drive housings — bearing bosses sized for the ring-and-pinion load path, machined to the same H7 standard as the transmission bore.
- E-axle and e-drive reduction-gear housings for electrified powertrains — the same bearing-bore and sealing-face logic as a conventional gearbox, in a part that usually needs to run cooler and lighter.
- Clutch housings.
- Oil pans, sumps and valve-body covers.
- PTO and auxiliary gearbox housings for off-highway and mobile equipment — the same customer base we already serve with custom hydraulic cylinders for mobile hydraulics often needs a cast housing for the gearbox sitting next to that cylinder.
Production process
- Drawing review and DFM. Draft angles, parting line, gate and overflow placement, and the stock left for post-machining are reviewed before tooling starts. On a gearbox housing this review also flags the bearing bores and sealing faces as the zones that cannot carry porosity.

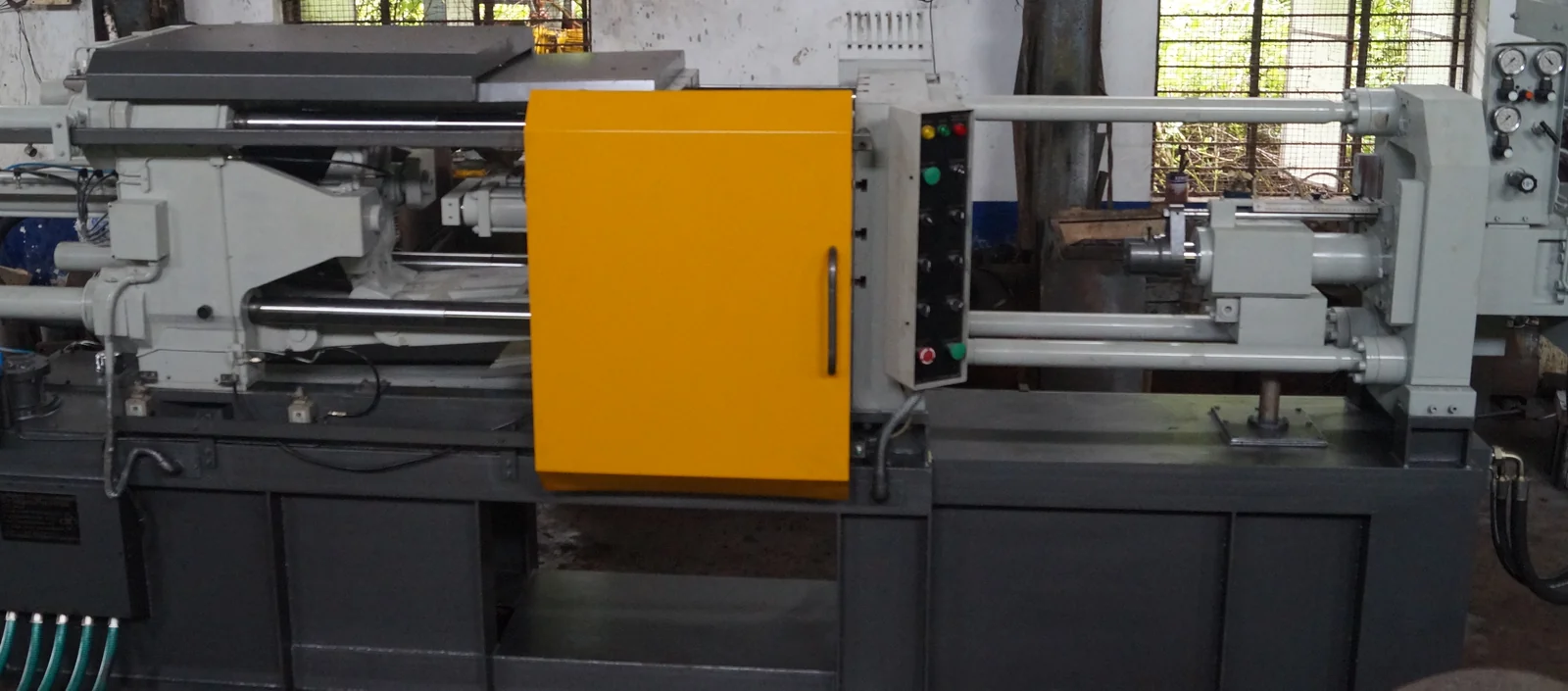

- Tooling. Steel dies in H13 or P20 are CNC-machined and trialed on a production press before the first article is signed off.
- High-pressure die casting. Standard cold-chamber HPDC for housings that only need to hold shape; vacuum-assisted HPDC where the housing will be solution-treated to T6 or has to hold a leak-tight seal at a bearing bore or gasket face.
- Trimming and deburring. Sprue, runner and overflow are removed and the flash is cleaned from the parting line.
- Heat treatment. Vacuum-cast housings specified for T6 go through solution treatment and ageing at this stage, before final machining locks in dimensions.

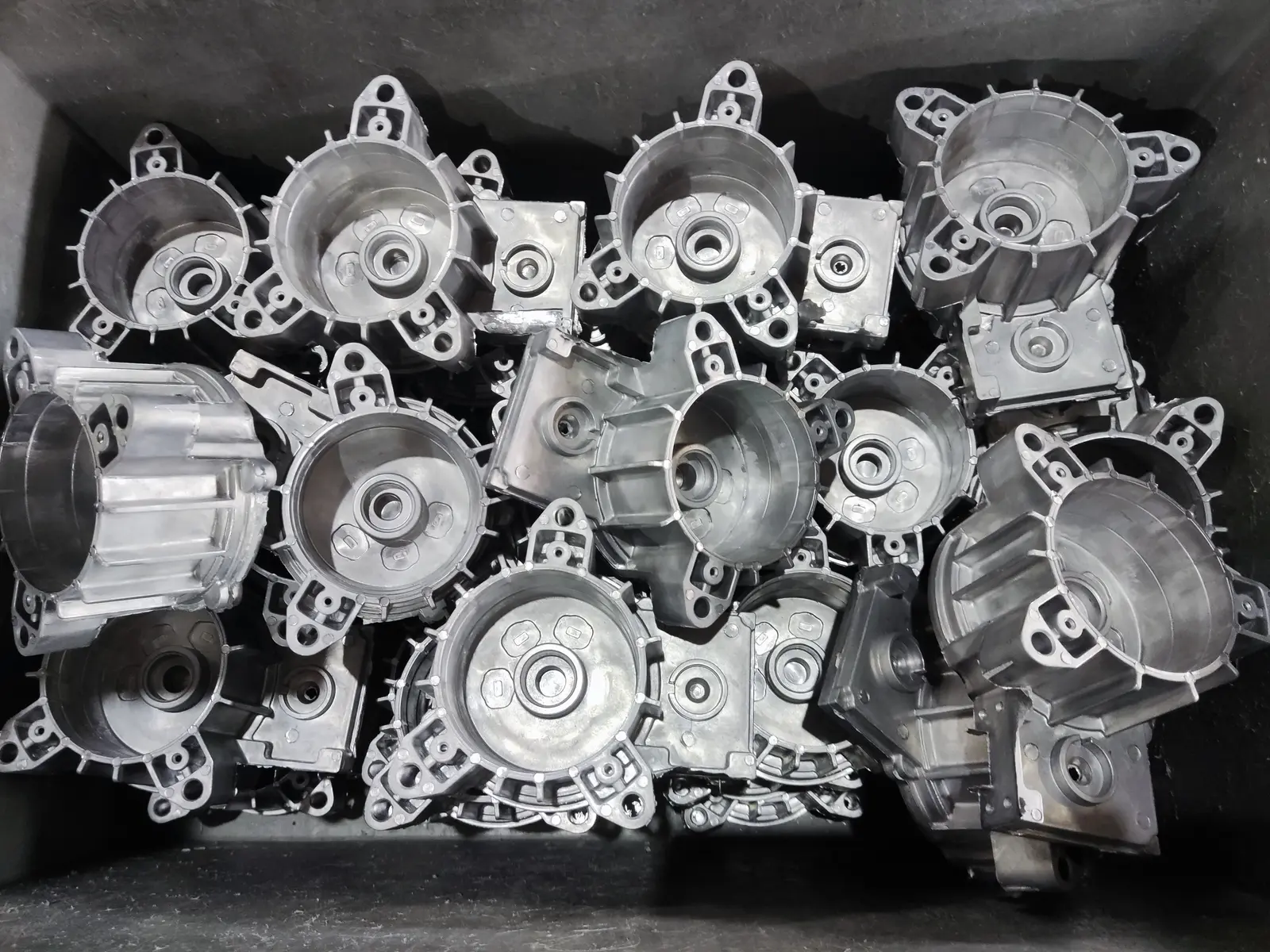

- CNC post-machining. Bearing bores are bored to H7, mounting-flange faces are machined flat for a gasket or liquid-seal joint, thread inserts are set, and oil galleries and sensor bosses are drilled and tapped to drawing.
- Leak testing. Sealing faces and bearing bores on oil-tight housings are checked on an air-decay or pressure-decay rig before the part is released.
- Inspection and documentation. CMM dimensional report, X-ray check on porosity-sensitive zones, material certificate to EN 1706, and — for automotive buyers who need it — a PPAP-style documentation package assembled around that same data.
Quality control
Every housing carries the same documentation regardless of where it ends up in a driveline:

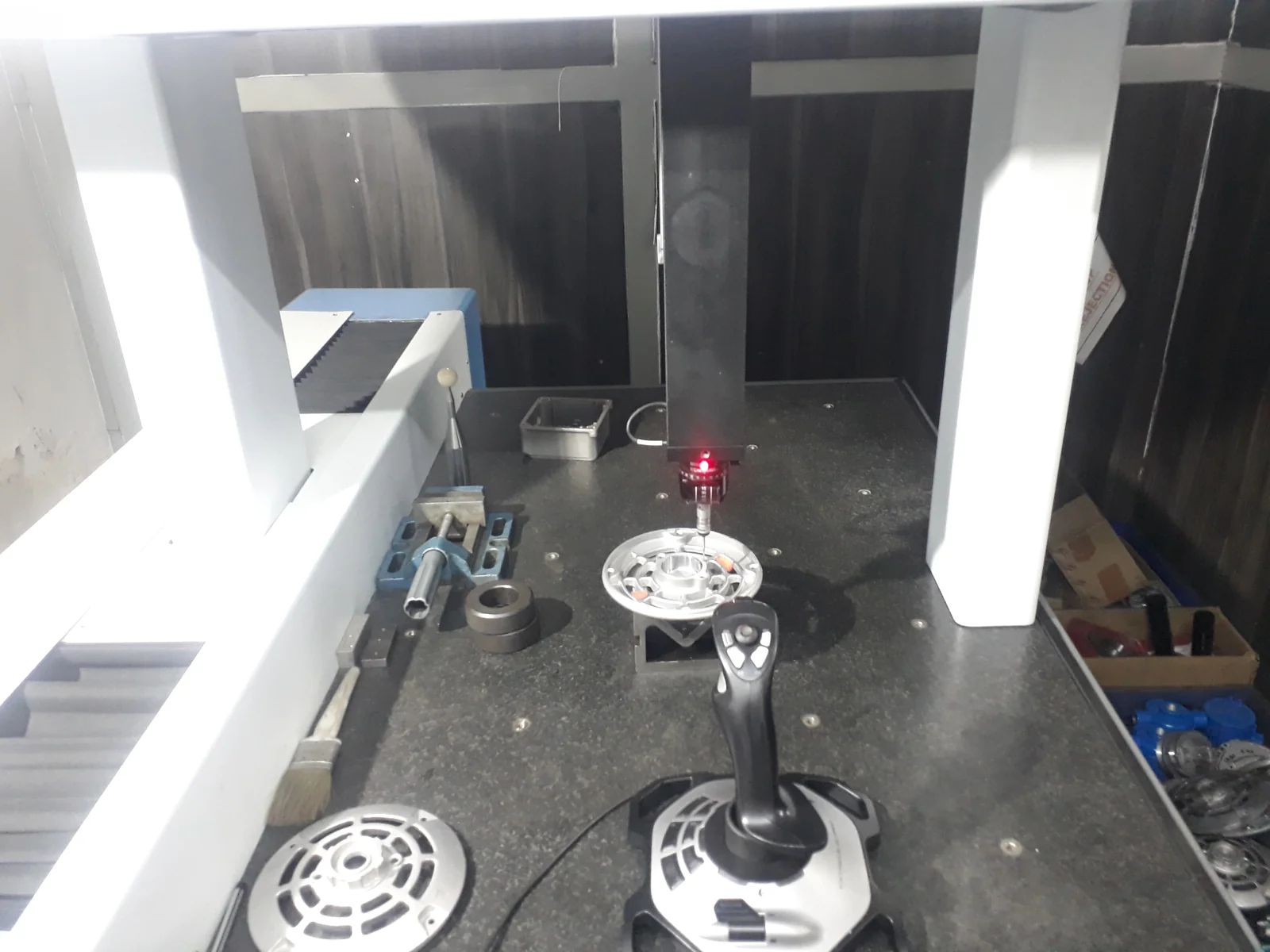

- CMM dimensional inspection on a Zeiss measuring system, first article and periodic batch control
- X-ray inspection for porosity and shrinkage at bearing bosses and sealing zones
- Statistical Process Control with real-time monitoring on the press
- Air-decay or pressure-decay leak test on sealed housings
- Material certification to EN 1706
- ISO 9001:2015 quality management, with TÜV and SGS oversight
- PPAP-style first-article documentation package assembled on request for automotive and OEM buyers
Why customers choose Hydroforce for die-cast powertrain housings
The die-casting line has more than 20 years behind it, and it sits in the same building as the tool room, the CNC machining floor and the CMM lab that finish and inspect the part. That matters more on a gearbox housing than on almost any other die-cast part we make: the bearing bore that decides whether the gearbox runs quietly for ten years is machined by the same team that ran the press, on machines they know, against a print they reviewed before the tool was cut. Nothing changes hands between casting and the finished, inspected housing.
Get a quotation
Need a die-cast aluminum housing for a gearbox, transfer case, differential or e-axle? Send your drawing or 3D model to office@hydroforce.ee, or reach us through our contact page. We will review the design for castability, recommend the alloy and heat-treatment path, and quote tooling and series production.
